WF168WA01/02     6 paper cone mid/woofer, 4/8 ohm









Nominal impedance is 4 ohm for WF168WA01 and 8 ohm for WF168WA02. Otherwise the two models are identical.
WF168WA01/02 are mid/woofers designed for demanding bass and midrange applications. It works equally well for high-end hi-fi, high quality home theater systems, and monitoring setups.
Powered by a large 90 mm magnet structure that ensures good efficiency and optimal T/S parameters.
The large 32 mm voice coil ensures high power handling - thermally and mechanically
The optimized paper cone ensures large bandwidth and low distortion. Distortion is further reduced by efficient venting and an alu shorting ring stabilizing the magnetic field in the air gap.

Frequency resp.
Specifications
Dimensions
Ordering info

WF168WA01/02 are very good choices for medium sized 2- way speaker systems.

FEATURES

WF168WA
Extensive_venting
  • Alu field-stabilizing ring inside magnet assembly for reduced high-level distortion
  • Vented voice coil former for reduced distortion and compression
  • New vented chassis for lower air flow speed reducing audible distortion
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor system with 1” voice coil diameter and 90 mm magnet for better control, power handling, and efficiency
  • Black magnet parts for better heat transfer to increase power handling
  • Linear suspension with specially designed Conex damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation, for long-term reliable connection

FREQUENCY RESPONSE

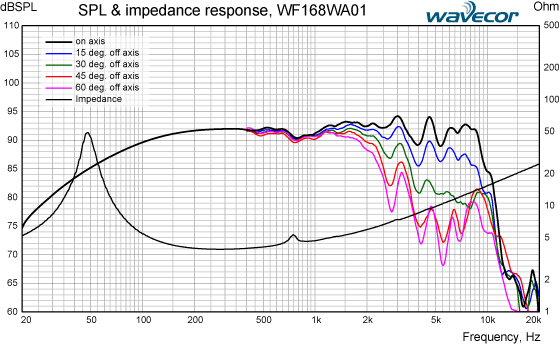

WF168WA01-SPL-&-IMP-respons

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open  (no cabinet)
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Semi-current-drive,
     nominal current 2 mA
Smoothing: None

WF168WA02-SPL-IMP-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open  (no cabinet)
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Semi-current-drive,
     nominal current 2 mA
Smoothing: None

NOMINAL SPECIFICATIONS

Notes

  Parameter

WF168WA01

WF168WA02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

6

6

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

3

3

[kHz]

1, 3

Sensitivity, 2.83V/1m (average SPL in range 200 - 1,000 Hz)

91.5

89

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering





[W]

2

Power handling, long term, IEC 268-5, no additional filtering





[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

60

60

[W]



Effective radiating area, Sd

139

139

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

47.5



49



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

12.5

11.8

[g]

3

Force factor, Bxl

5.1

6.4

[N/A]

3, 6

Suspension compliance, Cms

0.90



0.90



[mm/N]

3, 6

Equivalent air volume, Vas

24.6



24.6



[lit.]

3, 6

Mechanical Q, Qms

7.0



7.1



[-]

3, 6

Electrical Q, Qes

0.46



0.56



[-]

3, 6

Total Q, Qts

0.43



0.52



[-]

4

Voice coil resistance, RDC

3.2

6.3

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)

0.24

0.39

[mH]



Voice coil inside diameter

32

32

[mm]



Voice coil winding height

11

11

[mm]



Air gap height

5

5

[mm]



Magnet weight

400

400

[g]



Total unit net weight excl. packaging

1.03

1.03

[kg]

3, 5

Krm

0.46

0.26

[mohm]

3, 5

Erm

0.88

0.69

[-]

3, 5

Kxm

5.2

8.1

[mH]

3, 5

Exm

0.69

0.69

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.


OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

WF168WA01/02 outline drawing
WF168WA01-02-outline-drawing

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

PACKAGING AND ORDERING INFORMATION

Part no. WF168WA01-01

4 ohm version, individual packaging (one piece per box)

Part no. WF168WA01-02

4 ohm version, bulk packaging

Part no. WF168WA02-01

8 ohm version, individual packaging (one piece per box)

Part no. WF168WA02-02

8 ohm version, bulk packaging

Latest update: September 24, 2012




Specifications are subject to change without any further notice.
