WF132TU02    5" die cast car woofer, 4 ohm

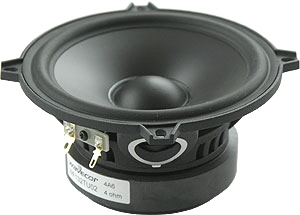

WF132TU02 car mid/wooferWF132TU02 is a mid/woofer designed for demanding bass and midrange applications. It works equally well for most applications but was designed especially for automotive high-end sound systems. The very rigid die cast alu chassis follows the common standard dimensions for easy installation in cars.
WF132TU02 is powered by a large 90mm magnet structure that ensures good efficiency and optimized T/S parameters.
The large 32mm voice coil and the size of the magnet ensure high power handling - thermally and mechanically.

Frequency resp.
Specifications
Dimensions
Ordering info

The optimized paper cone ensures wide bandwidth and low distortion. Distortion is further reduced by efficient venting of chassis and voice coil.
WF132TU02 is an obvious choice for 2-way car speaker systems.

FEATURES

  • Very rigid die cast alu chassis to withstand challenging car applications
  • Built-in alu field-stabilizing ring for reduced high-level distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor system with 1” voice coil diameter and large 90 mm magnet for better control, power handling, and efficiency
  • Linear suspension with specially designed Conex damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation for long-term reliable connection - important in a car environment

FREQUENCY RESPONSE

WF132TU02-SPL-&-IMP-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open  (no cabinet)
Microphone distance: 1.0 m
Input level: 2.83 VRMS
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Semi-current-drive,
     nominal current 2 mA
Smoothing: None

NOMINAL SPECIFICATIONS

Notes

  Parameter

Before burn-in

After
burn-in

Unit



Nominal size

5

[inch.]



Nominal impedance

4

[ohm]



Recommended max. upper frequency limit

4

[kHz]

1, 3

Sensitivity, 2.83V/1m (average SPL in range 200 - 1,000 Hz)

90

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering



[W]

2

Power handling, long term, IEC 268-5, no additional filtering



[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

55

[W]



Effective radiating area, Sd

95

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

62



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

10.0

[g]

3

Force factor, Bxl

5.2

[N/A]

3, 6

Suspension compliance, Cms

0.66



[mm/N]

3, 6

Equivalent air volume, Vas

9.0



[lit.]

3, 6

Mechanical Q, Qms

8.0



[-]

3, 6

Electrical Q, Qes

0.46



[-]

3, 6

Total Q, Qts

0.44



[-]

4

Voice coil resistance, RDC

3.2

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)

0.23

[mH]



Voice coil inside diameter

32

[mm]



Voice coil winding height

11

[mm]



Air gap height

5

[mm]



Magnet weight

400

[g]



Total unit net weight excl. packaging

1.08

[kg]

3, 5

Krm

 0.13

[mohm]

3, 5

Erm

0.99

[-]

3, 5

Kxm

4.2

[mH]

3, 5

Exm

0.71

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10 VRMS. The unit is not burned in before shipping.


OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

WF132TU02 outline drawing
WF132TU02-outline-drawing

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

PACKAGING AND ORDERING INFORMATION

Part no. WF132TU02-01

Individual packaging (one piece per box)

Part no. WF132TU02-02

Bulk packaging

Latest update: September 26, 2014



Specifications are subject to change without any further notice.
