- Dual-Piston design combining a 22 mm textile dome with a 45 mm ceramic cone (TW045WA01) or black anodized alu cone (TW045WA02).
- Precision textile dome ensuring high frequency extension, ceramic/alu cone adding low frequency output and efficiency
- Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
- Front-side reflection reducing foam ring
- Flat low-damping IIR surround
- Vented through to a damped rear, die cast, chamber for low resonance frequency and low distortion
- Alu chassis with built-in heat sink for increased long-term power handling
- Dual-neodymium magnet structure
- Optimized dome shape for ultra-high frequency cut-off
- Underhung voice coil design for improved linearity
- 22 mm voice coil design with high power handling, and low resonance frequency
- Copper-clad aluminium voice coil wire offering lower moving mass for improved efficiency and transient response
- Flexible lead wires for higher power handling and larger excursion
- Gold plated terminals to prevent oxidation and ensure long-term reliable connection
- Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
|
|
|
|
|
Notes
|
Parameter
|
TW045WA01/02
|
|
Unit
|
|
|
Nominal size
|
22/45
|
|
[mm]
|
|
|
Nominal impedance
|
4
|
|
[ohm]
|
|
|
Recommended frequency range
|
2 - 40
|
|
[kHz]
|
|
1, 4
|
Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz)
|
95
|
|
[dB]
|
|
2
|
Power handling, short term, IEC 268-5, 3.0 kHz@12dB/oct.
|
1,300
|
|
[W]
|
|
2
|
Power handling, long term, IEC 268-5, 3.0 kHz@12dB/oct.
|
450
|
|
[W]
|
|
2
|
Power handling, continuous, IEC 268-5, 3.0 kHz@12dB/oct.
|
180
|
|
[W]
|
|
|
Effective radiating area, Sd
|
20
|
|
[sq.cm]
|
|
3, 4, 6
|
Resonance frequency (free air, no baffle), Fs
|
840
|
|
[Hz]
|
|
|
Moving mass, incl. air (free air, no baffle), Mms
|
1.12
|
|
[g]
|
|
3
|
Force factor, Bxl
|
3.0
|
|
[N/A]
|
|
3, 4, 6
|
Suspension compliance, Cms
|
0.032
|
|
[mm/N]
|
|
3, 4, 6
|
Equivalent air volume, Vas
|
18
|
|
[mlit.]
|
|
3, 4, 6
|
Mechanical resistance, Rms
|
1.34
|
|
[Ns/m]
|
|
3, 4, 6
|
Mechanical Q, Qms
|
4.4
|
|
[-]
|
|
3, 4, 6
|
Electrical Q, Qes
|
1.85
|
|
[-]
|
|
3, 4, 6
|
Total Q, Qts
|
1.30
|
|
[-]
|
|
4
|
Voice coil resistance, RDC
|
2.9
|
|
[ohm]
|
|
5
|
Voice coil inductance, Le (measured at 20 kHz)
|
|
|
[μH]
|
|
|
Voice coil inside diameter
|
22
|
|
[mm]
|
|
|
Voice coil winding height
|
2.5
|
|
[mm]
|
|
|
Air gap height
|
4.0
|
|
[mm]
|
|
|
Theoretical linear motor stroke, Xmax
|
+/-0.75
|
|
[mm]
|
|
|
Magnet weight
|
45.7 + 8.3
|
|
[g]
|
|
|
Total unit net weight excl. packaging
|
270
|
|
[g]
|
|
3, 4, 5
|
Krm
|
|
|
[mohm]
|
|
3, 4, 5
|
Erm
|
|
|
[-]
|
|
3, 4, 5
|
Kxm
|
|
|
[mH]
|
|
3, 4, 5
|
Exm
|
|
|
[-]
|
|
|
|
|
|
Note 1
|
Measured in infinite baffle.
|
|
Note 2
|
Tested in free air (no cabinet).
|
|
Note 3
|
Measured using a semi-constant current source, nominal level 2 mA.
|
|
Note 4
|
Measured at 25 deg. C
|
|
Note 5
|
It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
|
|
Note 6
|
Measured before burn in
|
|
|
|
|

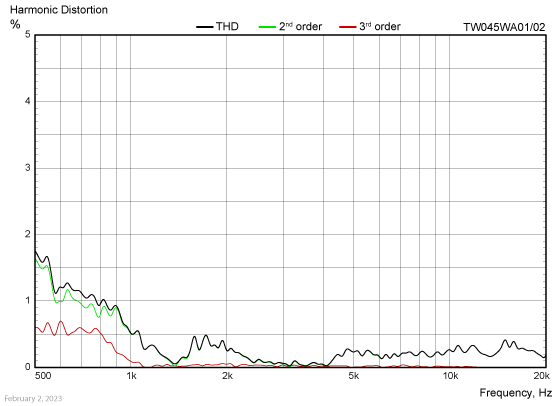

HARMONIC DISTORTION
|
|
|
|
OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)
|
|
|
|
|
|
|
Part no. TW045WA01-01
|
4 ohm version, white ceramic cone, individual packaging (one pair per box)
|
|
Part no. TW045WA01-02
|
4 ohm version, white ceramic cone, bulk packaging
|
|

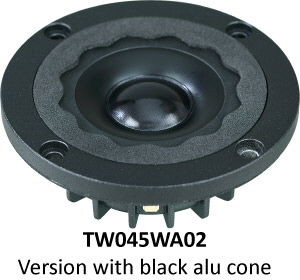

Part no. TW045WA02-01
|
4 ohm version, black alu cone, individual packaging (one pair per box)
|
|
Part no. TW045WA02-02
|
4 ohm version, black alu cone, bulk packaging
|
|
|
|
|
Latest update:December 2, 2023
|
|
|
|
|
|
|
|
Specifications are subject to change without any further notice.
Copyright © 2006-2023 by Wavecor Ltd., China. All rights reserved.
|
|
|
|
|
|
