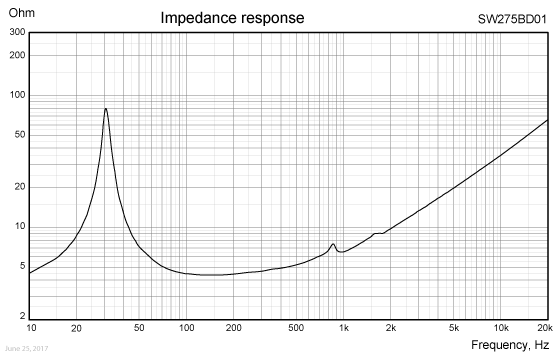

SW275BD01 impedance response
|
|
SW275BD02 SPL response
|
|

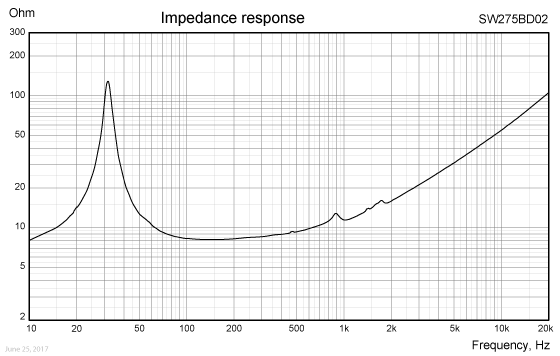

SW275BD02 impedance response
|
|
|
|
|
Important! Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.
|
|
|
|
|
|

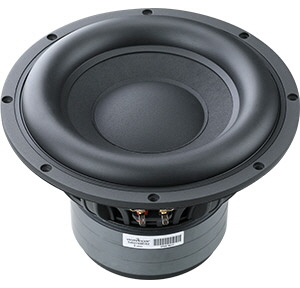

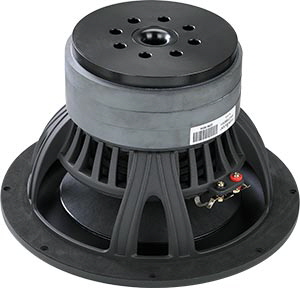

FEATURES
|
|
|
|
- Extreme overhung voice coil with +/-16mm of linear stroke to ensure lowest distortion at very high drive levels
- FEA optimized suspension for improved symmetry and lower distortion
- Very large motor structure with 2.5” voice coil for better control and power handling
- Balanced Drive motor for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Venting through holes in cone neck for reduced distortion and compression
- Rigid Foamed Paper cone to ensure piston motion even at high levels - for reduced distortion
- Dual-spider design for higher mechanical durability and high-excursion stability
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black plated motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions

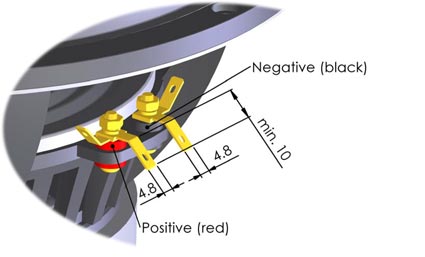

- Gold plated terminals to ensure long-term trouble free connection
- Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
|
|
|
|
NOMINAL SPECIFICATIONS
|
|
|
|
Notes
|
Parameter
|
SW275BD01
|
SW275BD02
|
Unit
|
Before burn-in
|
After burn-in
|
Before burn-in
|
After burn-in
|
|
Nominal size
|
10.75
|
10.75
|
[inch.]
|
|
Nominal impedance
|
4
|
8
|
[ohm]
|
|
Recommended max. upper frequency limit
|
400
|
400
|
[Hz]
|
1, 4
|
Sensitivity, 2.83V/1m (calculated from T/S parameters)
|
85.5
|
82.5
|
[dB]
|
2, 4
|
Power handling, short term, IEC 268-5, no additional filtering
|
|
|
[W]
|
2, 4
|
Power handling, long term, IEC 268-5, no additional filtering
|
|
|
[W]
|
2
|
Power handling, continuous, IEC 268-5, no additional filtering
|
250
|
250
|
[W]
|
|
Effective radiating area, Sd
|
314
|
314
|
[sq.cm]
|
3, 4, 6
|
Resonance frequency (free air, no baffle), Fs
|
30.8
|
|
31.6
|
|
[Hz]
|
|
Moving mass, incl. air (free air, no baffle), Mms
|
121
|
115
|
[g]
|
3, 4
|
Force factor, Bxl
|
12.1
|
15.2
|
[N/A]
|
3, 4, 6
|
Suspension compliance, Cms
|
0.22
|
|
0.22
|
|
[mm/N]
|
3, 4, 6
|
Equivalent air volume, Vas
|
31
|
|
31
|
|
[lit.]
|
3, 4, 6
|
Mechanical resistance, Rms
|
1.85
|
|
1.85
|
|
[Ns/m]
|
3, 4, 6
|
Mechanical Q, Qms
|
12.7
|
|
12.4
|
|
[-]
|
3, 4, 6
|
Electrical Q, Qes
|
0.59
|
|
0.70
|
|
[-]
|
3, 4, 6
|
Total Q, Qts
|
0.57
|
|
0.67
|
|
[-]
|
4
|
Voice coil resistance, RDC
|
3.7
|
7.1
|
[ohm]
|
5
|
Voice coil inductance, Le (measured at 1 kHz)
|
0.94
|
1.54
|
[mH]
|
|
Voice coil inside diameter
|
64
|
64
|
[mm]
|
|
Voice coil winding height
|
39
|
39
|
[mm]
|
|
Air gap height
|
7
|
7
|
[mm]
|
|
Theoretical linear motor stroke, Xmax
|
+/-16
|
+/-16
|
[mm]
|
|
Magnet weight
|
|
|
[g]
|
|
Total unit net weight excl. packaging
|
8
|
8
|
[kg]
|
3, 4, 5
|
Krm
|
16
|
51
|
[mohm]
|
3, 4, 5
|
Erm
|
0.52
|
0.44
|
[-]
|
3, 4, 5
|
Kxm
|
2.4
|
3.5
|
[mH]
|
3, 4, 5
|
Exm
|
0.87
|
0.87
|
[-]
|
|
|
|
|
Note 1
|
Measured in infinite baffle.
|
Note 2
|
Tested in free air (no cabinet).
|
Note 3
|
Measured using a semi-constant current source, nominal level 2 mA.
|
Note 4
|
Measured at 25 deg. C
|
Note 5
|
It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.
|
Note 6
|
After burn-in specifications are measured 12 hours after exciting the transducer by a 20 Hz sine wave for 2 hours at level 10/14 VRMS (4/8 ohm version). The unit is not burned in before shipping.
|
|
|
|
|

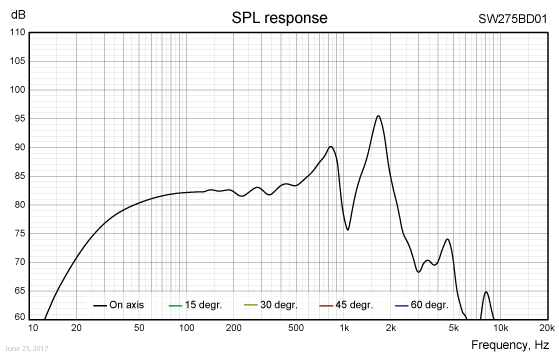

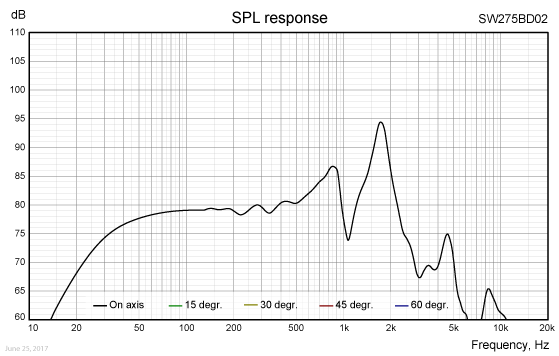

FREQUENCY RESPONSE
|
|
|
|

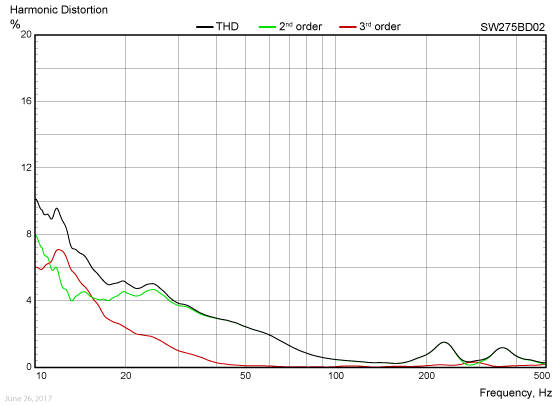

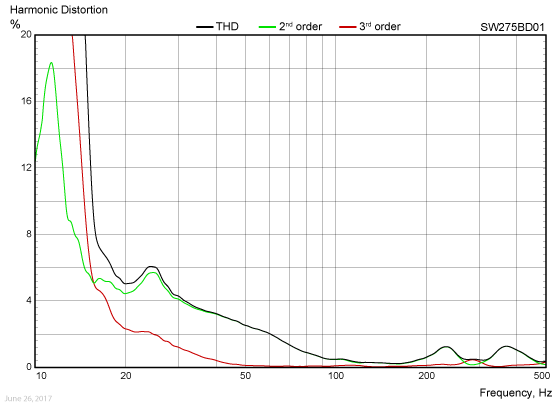

HARMONIC DISTORTION
|
|
|
|

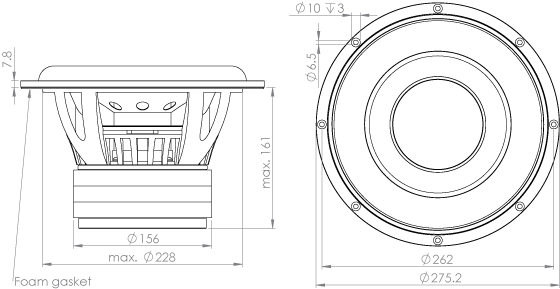

OUTLINE DRAWING AND NOMINAL DIMENSIONS
|
|
|
|
|
|
Part no. SW275BD01-01
|
4 ohm version, individual packaging (one piece per box)
|
Part no. SW275BD02-01
|
8 ohm version, individual packaging (one piece per box)
|
|
|
|
|
Latest update: March 1, 2024
|
|
|
|
|
|
Specifications are subject to change without any further notice. Copyright © 2006-2023 by Wavecor Ltd., China. All rights reserved.
|
|
|
|
|
|
MORE INFO
|
|
|
|
|
|
PDF data sheet
|
|
Balanced Drive technical paper
|
|
|
|
Cabinet simulations, SW275BD01
|
|
Cabinet simulations, SW275BD02
|
|
|
|
|
