SW146WA01/02     5 paper cone subwoofer, 4/8 ohm









Wavecor Balanced Drive Technology

5” High Performance Steel Frame Subwoofer Units.
Suitable for dedicated subwoofer applications  and as low frequency transducers in 2-, 3- and multi-way speaker systems.

Frequency resp.
Specifications
Dimensions
Ordering info

FEATURES

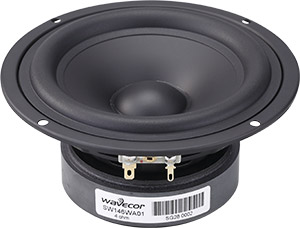

SW146WA01_02-photo-300px
  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Large linear stroke, ensuring low distortion at high output levels
  • Rigid paper cones to ensure piston motion even at high levels - for reduced distortion
  • Rigid steel chassis’ with extensive venting for lower air flow speed reducing audible distortion
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor structures for better control and power handling
  • Built-in alu field-stabilizing rings for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing


FREQUENCY RESPONSE

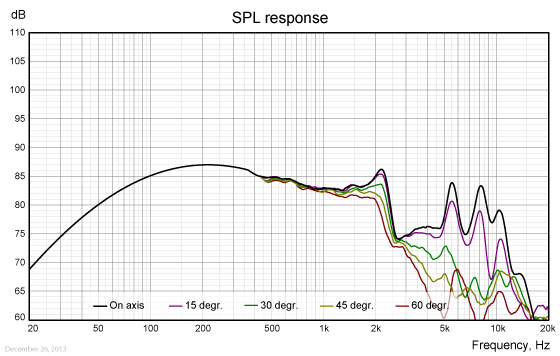

SW146WA01-FR

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

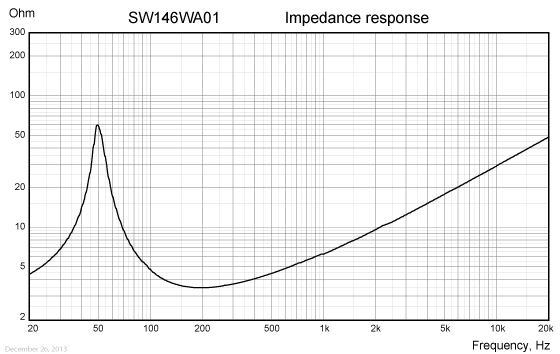

SW146WA01-IMP

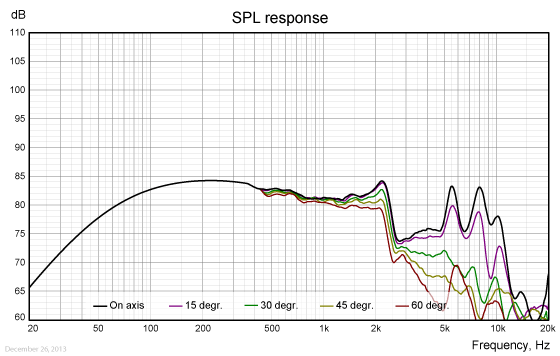

SW146WA02-FR

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

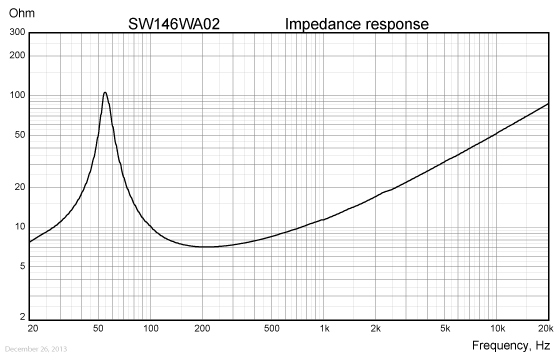

SW146WA02-IMP

NOMINAL SPECIFICATIONS

Notes

  Parameter

SW146WA01

SW146WA02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

5

5

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

500

500

[Hz]

1, 3

Sensitivity, 2.83V/1m (calculated from T/S parameters)

88

85

[dB]

2

Power handling, short term, IEC 268-5, no additional filtering





[W]

2

Power handling, long term, IEC 268-5, no additional filtering





[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

55

55

[W]



Effective radiating area, Sd

85

85

[sq.cm]

3, 6

Resonance frequency (free air, no baffle), Fs

51



54



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

18.3

16.2

[g]

3

Force factor, Bxl

5.9

7.8

[N/A]

3, 6

Suspension compliance, Cms

0.54



0.54



[mm/N]

3, 6

Equivalent air volume, Vas

5.5



5.5



[lit.]

3, 6

Mechanical resistance, Rms

0.61



0.61



[Ns/m]

3, 6

Mechanical Q, Qms

9.5



9.0



[-]

3, 6

Electrical Q, Qes

0.50



0.57



[-]

3, 6

Total Q, Qts

0.48



0.53



[-]

4

Voice coil resistance, RDC

3.0

6.3

[ohm]

5

Voice coil inductance, Le (measured at 1 kHz)

0.90

1.5

[mH]



Voice coil inside diameter

32

32

[mm]



Voice coil winding height

16

16

[mm]



Air gap height

4

4

[mm]



Theoretical linear motor stroke, Xmax

6

6

[mm]



Magnet weight





[g]



Total unit net weight excl. packaging

1.1

1.1

[kg]

3, 5

Krm

0.40

3.0

[mohm]

3, 5

Erm

0.96

0.78

[-]

3, 5

Kxm

9.4

9.1

[mH]

3, 5

Exm

0.71

0.77

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 20 deg. C

Note 5





It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm. This more accurate transducer model is described in a technical paper (PDF) here.

Note 6



After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 10/14.1 VRMS (4/8 ohm version). The unit is not burned in before shipping.

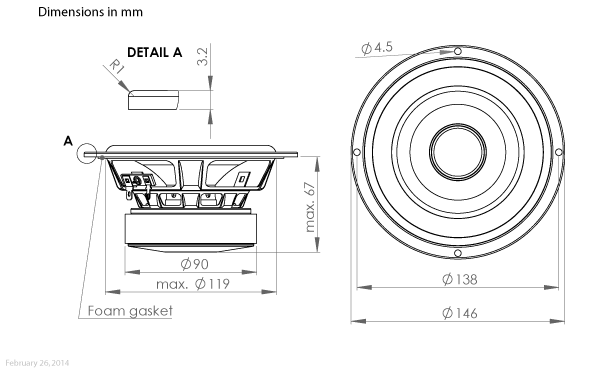

OUTLINE DRAWING AND NOMINAL DIMENSIONS

SW146WA01/02 outline drawing PDF
SW146WA01_02-dwg

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals-dimensions

PACKAGING AND ORDERING INFORMATION

Part no. SW146WA01-01

4 ohm version, individual packaging (one piece per box)

Part no. SW146WA01-02

4 ohm version, bulk packaging

Part no. SW146WA02-01

8 ohm version, individual packaging (one piece per box)

Part no. SW146WA02-02

8 ohm version, bulk packaging

Latest update: April 12, 2014



Specifications are subject to change without any further notice.
Copyright © 2006-2014 by Wavecor Ltd., Guangzhou, China. All rights reserved.
