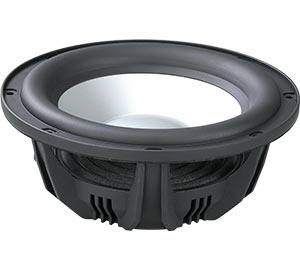

PR259WA01     10 die cast, alu cone passive radiator







PR259WA01 is a passive unit designed for dedicated subwoofer applications - as partner for our active subwoofer units.
Due to low mechanical losses it masters equally well low level details and extreme dynamic requirements.
For demanding sub bass applications using a passive unit is usually the only real alternative to sealed enclosures with active bass boost.
To make experimenting and individual tuning convenient and easy, PR259WA01 is delivered with three separate extra loads that are easily applied onto a threaded rod on the rear side of the cone.

Specifications
Dimensions
Ordering info

FEATURES

  • New optimized outer suspension (surround) for improved large-signal handling
  • Extremely rigid alu cone for precise transient response
  • Rigid die cast chassis with extensive venting for lower air flow speed reducing audible distortion
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Conex spider for better durability under extreme conditions
  • Custom tunable by adding one or more of the three extra weights (included)
PR259WA01-exchangeable-weights

NOMINAL SPECIFICATIONS

Notes

  Parameter

Before burn-in

After burn-in

Unit



Nominal size

10

[inch.]



Effective radiating area, Sd

312

[sq.cm]

1


Resonance frequency (free air, no baffle), Fs
       - without additional mass
       - with additional 50 g mass
       - with additional 100 g mass
       - with additional 150 g mass
       - with additional 200 g mass
       - with additional 250 g mass
       - with additional 300 g mass
       - with additional 350 g mass


18.1
16.6
15.4
14.5
13.7
13.0
12.4
11.9



[Hz]

2

Moving mass, incl. air (free air, no baffle), Mms, without extra weights

266

[g]

1

Suspension compliance, Cms

0.29



[mm/N]

1

Equivalent air volume, Vas

40



[lit.]

1


Mechanical Q, Qms
       - without additional mass
       - with additional 50 g mass
       - with additional 100 g mass
       - with additional 150 g mass
       - with additional 200 g mass
       - with additional 250 g mass
       - with additional 300 g mass
       - with additional 350 g mass


26.0
28.3
30.5
32.5
34.4
36.2
37.9
39.6



[-]



Maximum cone travel, mechanical limits, Xmax

20

[mm]



Total unit net weight excl. packaging (incl. 3 extra weights)

1.62

[kg]

Note 1

The unit is not burned in before shipping.

Note 2


The moving mass may be increased in 50 g steps up to a maximum of +350 g by adding one or more of the three extra weights that are included with the unit.

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

PR259WA01 outline drawing
PR259WA01-outline-drawing

PACKAGING AND ORDERING INFORMATION

Part no. PR259WA01-01

Individual packaging (one piece per box), incl. 3 separate weights

Latest update: July 1, 2017



Specifications are subject to change without any further notice.
