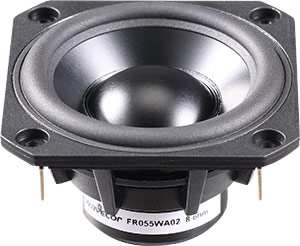

FR055WA01/02     2 neodymium, alu-cone fullranges, 4/8 ohm











The 2” transducers FR055WA01 (4 ohm) and FR055WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, and for personal audio products, where sound reproduction without compromises is required.
Will work well as a midrange/treble transducer in small speaker products in combinbation with for instance a small subwoofer unit.

Frequency resp.
Specifications
Dimensions
Distortion
Ordering info

FR055WA01_02-300px

Downloads
SPL and impedance response curves as text files

FR055WA01 SPL response

FR055WA01 on-axis SPL response

FR055WA01 impedance

FR055WA01 impedance response

FR055WA02 SPL response

FR055WA02 on-axis SPL response

FR055WA02 impedance

FR055WA02 impedance response

Important!
Please observe that these text files for download are actual measurements of the drivers measured in infinite baffle and without any enclosure. Measuring the drivers in a finite baffle (like the baffle of most speaker cabinets) and in any size of enclosure will lead to different response curves.

FEATURES

  • True full-range design with on-axis output to beyond 20kHz
  • Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Black anodized alu cone for better heat transfer
  • Vented polymer chassis for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 22 mm voice coil diameter for better control and power handling
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection

NOMINAL SPECIFICATIONS

Notes

  Parameter

FR055WA01

FR055WA02

Unit

Before burn-in

After burn-in

Before burn-in

After burn-in



Nominal size

2

2

[inch.]



Nominal impedance

4

8

[ohm]



Recommended max. upper frequency limit

fullrange

fullrange

[kHz]

1, 4

Sensitivity, 2.83V/1m (average SPL in range 200 - 10,000 Hz)

83.5

80.5

[dB]

2, 4

Power handling, short term, IEC 268-5, no additional filtering

40

40

[W]

2, 4

Power handling, long term, IEC 268-5, no additional filtering

20

20

[W]

2

Power handling, continuous, IEC 268-5, no additional filtering

4

4

[W]

2

Power handling, continuous, IEC 268-5, 135 Hz HP 12dB/oct.

10

10

[W]



Effective radiating area, Sd

15.6

15.6

[sq.cm]

3, 4, 6

Resonance frequency (free air, no baffle), Fs

142



145



[Hz]



Moving mass, incl. air (free air, no baffle), Mms

1.60

1.54

[g]

3, 4

Force factor, Bxl

2.09

2.67

[N/A]

3, 4, 6

Suspension compliance, Cms

0.785



0.785



[mm/N]

3, 4, 6

Equivalent air volume, Vas

0.27



0.27



[lit.]

3, 4, 6

Mechanical resistance, Rms

0.16



0.16



[Ns/m]

3, 4, 6

Mechanical Q, Qms

8.9



8.8



[-]

3, 4, 6

Electrical Q, Qes

1.01



1.22



[-]

3, 4, 6

Total Q, Qts

0.91



1.07



[-]

4

Voice coil resistance, RDC

3.1

6.2

[ohm]

5

Voice coil inductance, Le (measured at 10 kHz)

0.079

0.13

[mH]



Voice coil inside diameter

22

22

[mm]



Voice coil winding height

4.7

4.7

[mm]



Air gap height

2.0

2.0

[mm]



Theoretical linear motor stroke, Xmax

1.35

1.35

[mm]



Magnet weight





[g]



Total unit net weight excl. packaging





[kg]

3, 4, 5

Krm

0.020

0.022

[mohm]

3, 4, 5

Erm

1.00

1.04

[-]

3, 4, 5

Kxm

0.77

1.26

[mH]

3, 4, 5

Exm

0.77

0.77

[-]

Note 1

Measured in infinite baffle.

Note 2

Tested in free air (no cabinet).

Note 3

Measured using a semi-constant current source, nominal level 2 mA.

Note 4

Measured at 25 deg. C

Note 5

It is generally a rough simplification to assume that loudspeaker transducer voice coils exhibit the characteristics of an inductor. Instead it is a far more accurate approach to use the more advanced model often referred to as the “Wright empirical model”, also used in LEAP-4 as the TSL model (www.linearx.com), involving parameters Krm, Erm, Kxm, and Exm.
This more accurate transducer model is described in a technical paper (PDF) here.

Note 6

After burn-in specifications are measured 12 hours after exiting the transducer by a 20 Hz sine wave for 2 hours at level 2.83/4.0 VRMS (4/8 ohm version). The unit is not burned in before shipping.

FREQUENCY RESPONSE

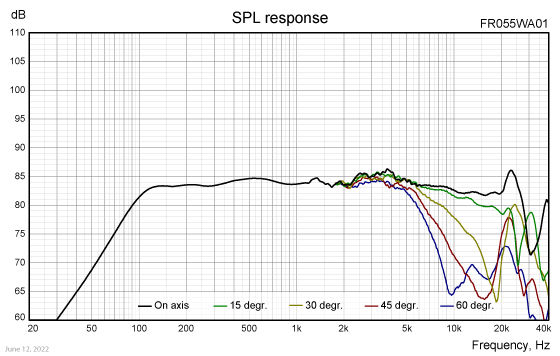

FR055WA01-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

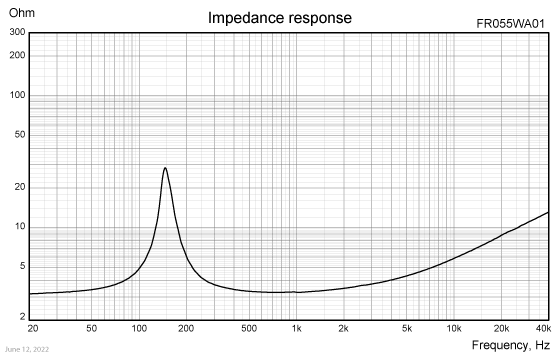

FR055WA01-IMP-response

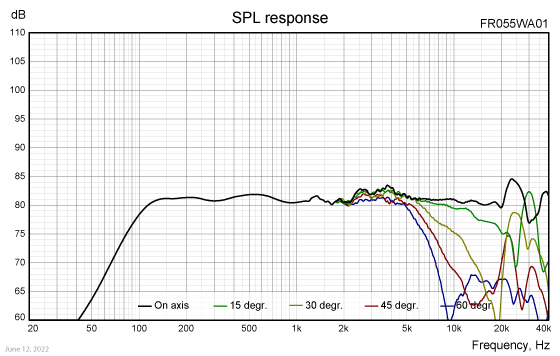

FR055WA02-SPL-response

Measuring conditions, SPL
Driver mounting: Flush in infinite
     baffle, back side open (no cabinet)
Microphone distance: 1.0 m
Input signal: 2.83 VRMS stepped sine wave
Smoothing: 1/6 oct.

Measuring conditions, impedance
Driver mounting: Free air, no baffle,
     back side open (no cabinet)
Input signal: Stepped sine wave, semi-
     current-drive, nominal current 2 mA
Smoothing: None

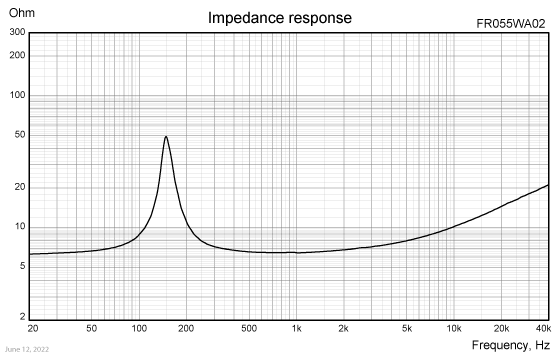

FR055WA02-IMP-response

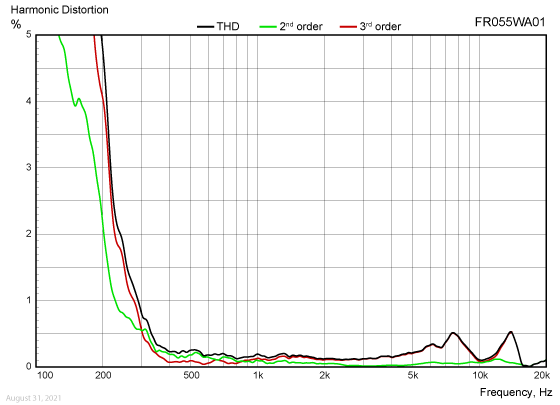

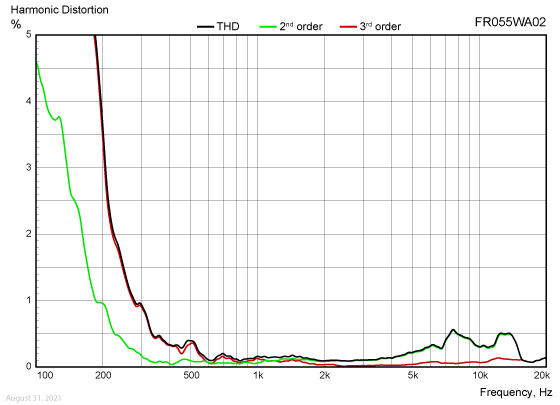

HARMONIC DISTORTION

FR055WA01-Harmonic-Distortion

Measuring conditions, harmonic distortion
Driver mounting: In sealed, heavily stuffed enclosure, internal volume 0.5 lit.,
                           baffle dimensions 92 mm x 92 mm
Microphone distance: 0.5 m
Input signal: Stepped sine wave, 1.26 VRMS (FR055WA01) / 1.79 VRMS (FR055WA02)
Smoothing: 1/6 oct.

FR055WA02-Harmonic-Distortion

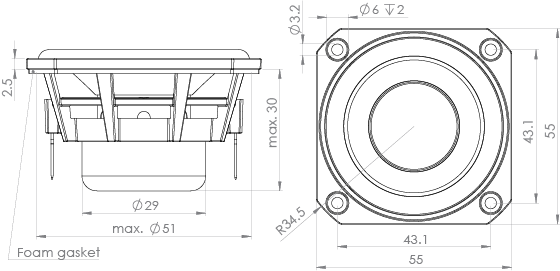

OUTLINE DRAWING AND NOMINAL DIMENSIONS (mm)

FR040WA01/02 outline drawing
FR055WA01_02-outline-DWG

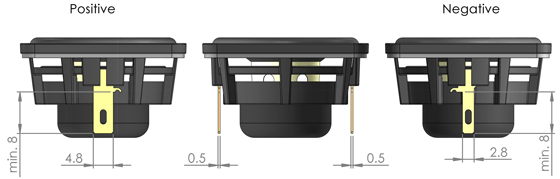

TERMINAL NOMINAL DIMENSIONS (mm)

Terminals

Plating, both terminals: GOLD

PACKAGING AND ORDERING INFORMATION

Part no. FR055WA01-01

4 ohm version, packed in pairs

Part no. FR055WA01-02

4 ohm version, packed in bulk (industrial) packaging

Part no. FR055WA02-01

8 ohm version, packed in pairs

Part no. FR055WA02-02

8 ohm version, packed in bulk (industrial) packaging

Latest update: Mar. 15, 2018




Specifications are subject to change without any further notice.
Copyright © 2006-2018 by Wavecor Ltd., Guangzhou, China. All rights reserved.
